5轴加工中心F14000-16000

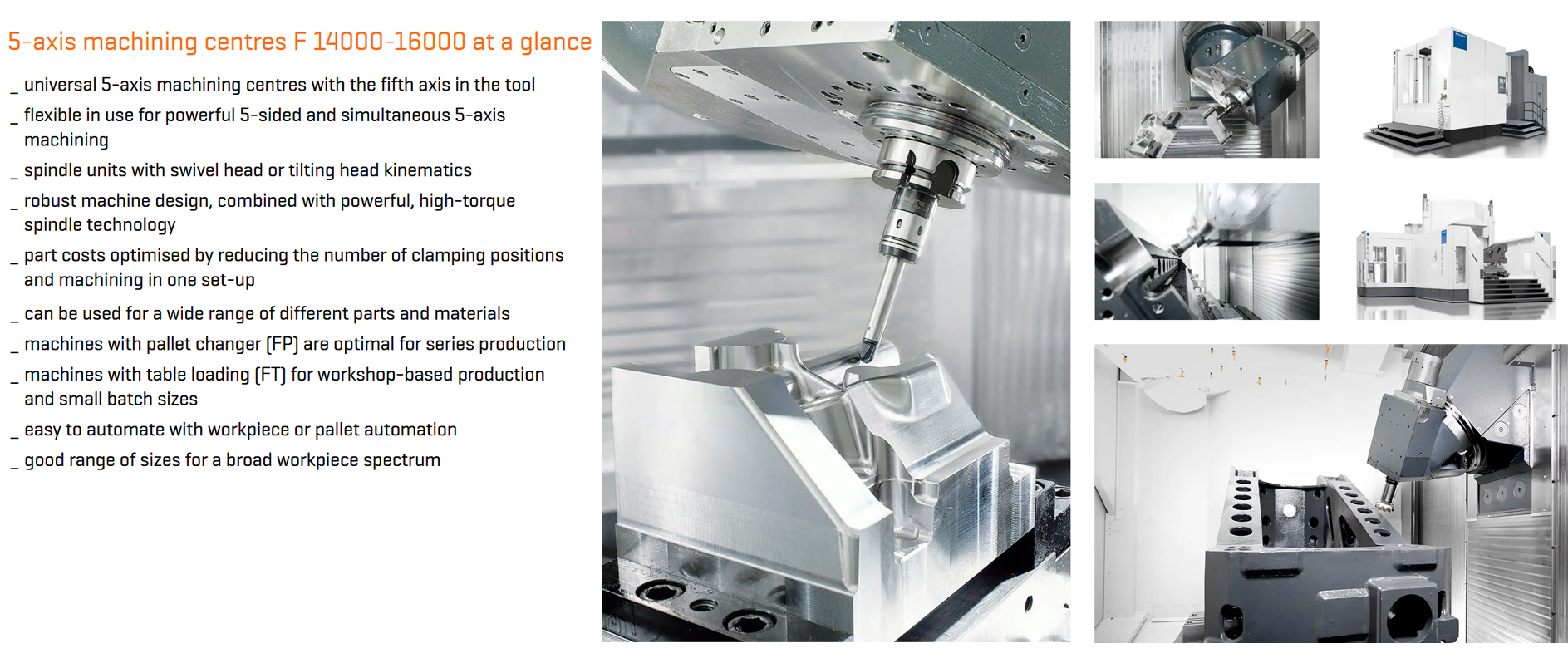

The benchmark in 5 axes: 5-axis machining centres with the 5th axis in the tool for high-performance 5-sided and simultaneous 5-axis machining

Solid machine construction, sound process experience, a wealth of milling expertise – these are the basic ingredients for our F series 5-axis machining centres. The benefits to you are obvious: 5-axis machining with maximum output and top quality, even during continuous operation. The HELLER F-series 5-axis machining centre is the right choice for anyone wanting to perform numerous functions on one machine and produce reliably, not just today but in the future too.


亮点

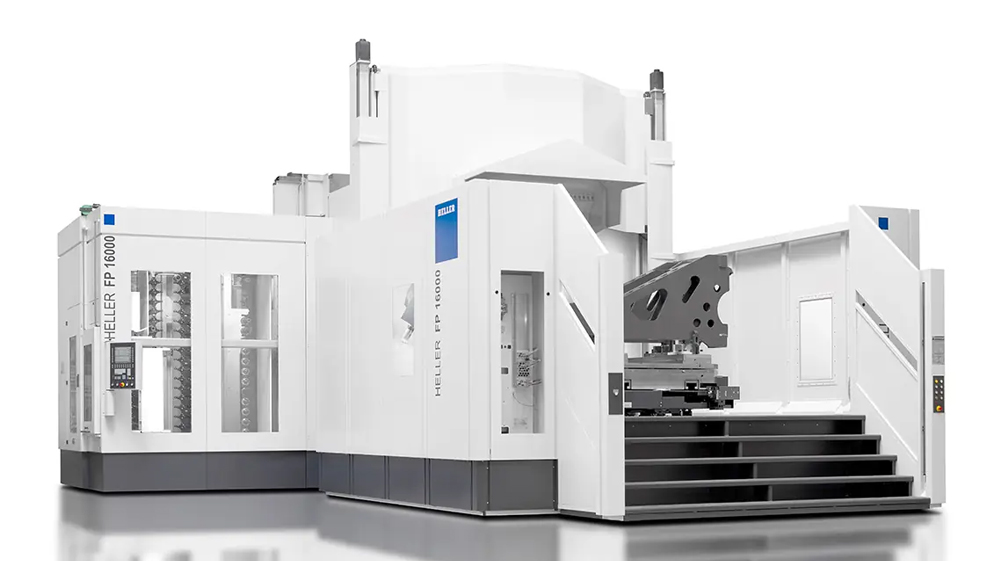

FP14000 / FP16000 / FT16000

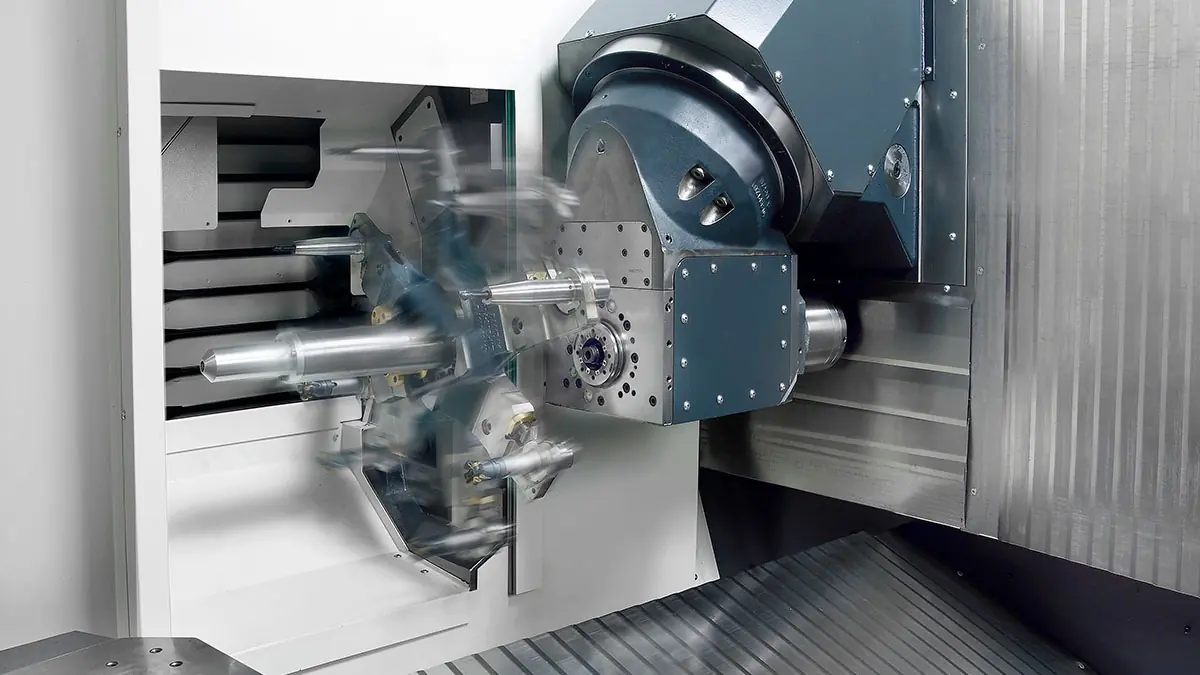

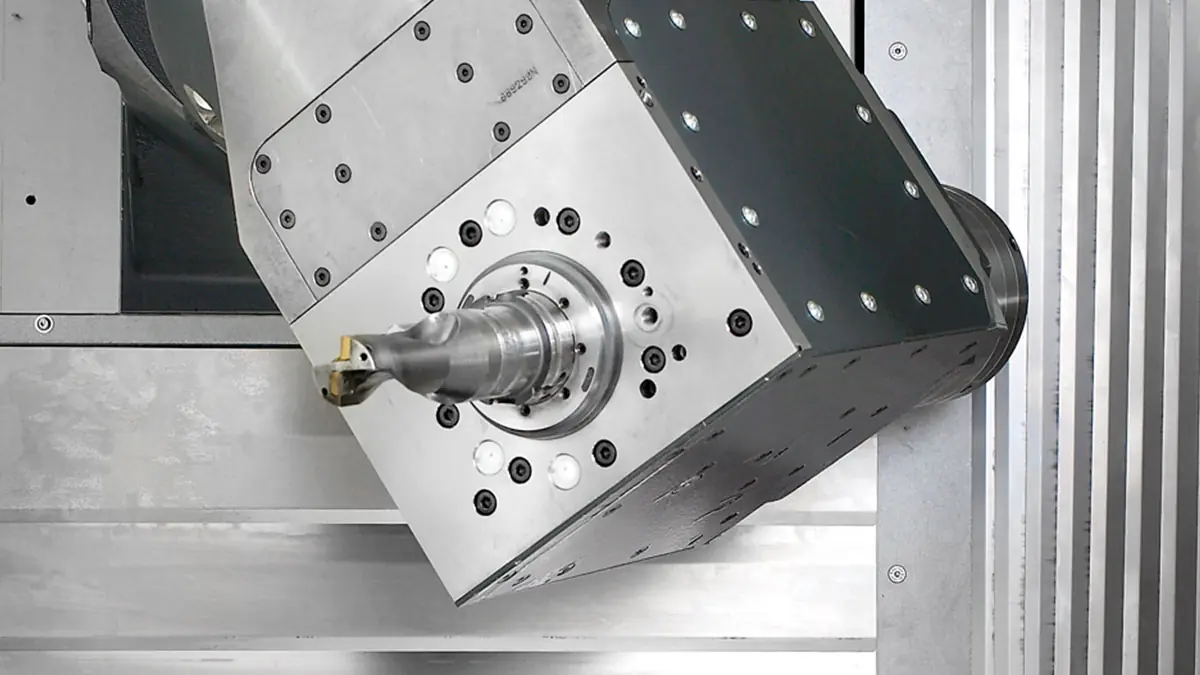

Spindle units

Optimised process stability in 5-axis machining is also a question of the right spindle. The F-series 5-axis machining centres offer a choice of swivel heads and tilting heads. No matter whether heavy-duty machining of cast iron or steel or high-volume machining of light alloys – the F-series offers the ideal solution for your requirements.

Tool management

Especially in 5-axis machining, you work daily with a broad range of tools and large tool geometries. No problem for our F-series 5-axis machining centres: You can of course continue to be flexible in the use of your tool pool, and rely on short tool setting times, short downtimes and short idle times.

FP14000 / FP16000 / FT16000
FP14000 / FP16000 / FT16000

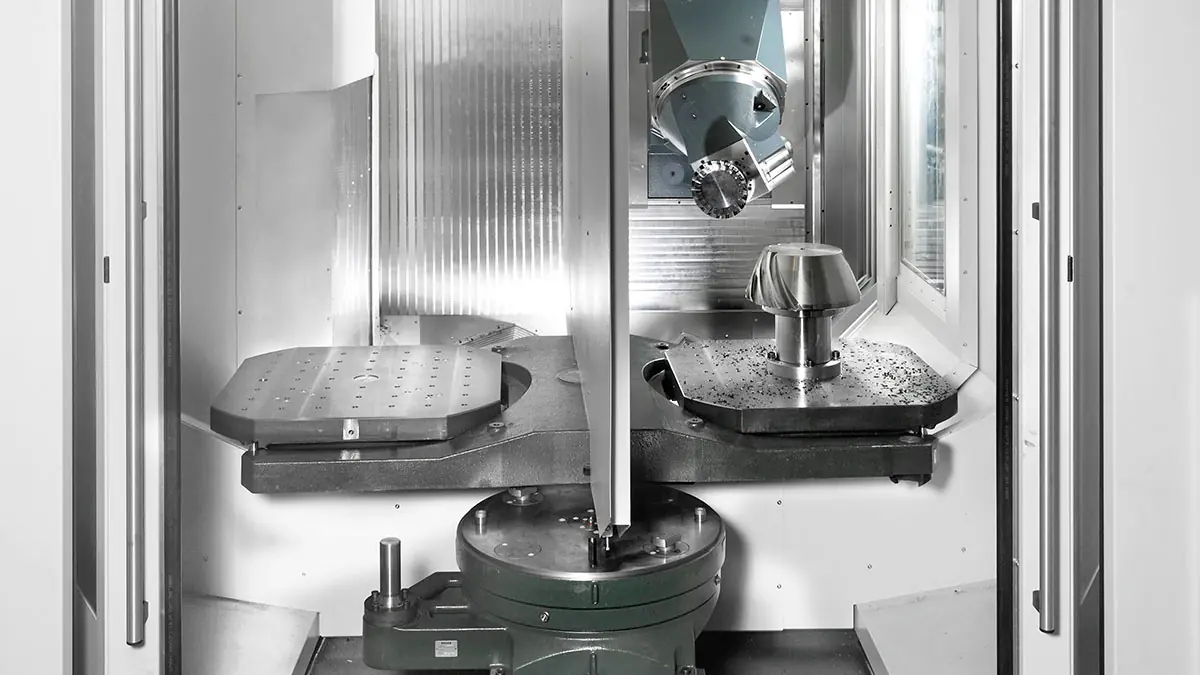

Workpiece management

You can of course configure the F-series 5-axis machining centre to suit your particular requirements: As a workshop machine with large work area, ideally suited for single part production or as a production machine with pallet changer and the corresponding automation solution for series production.

产品规范


在线咨询

Optional:
● 排屑器    铰链式  刮板式
● 接屑车    110L   220L
● 刀塔高压出水   TTC-30bar  TTC-50bar   TTC-70bar
● 对刀仪    自动式   手动式
● 自动化    机器人   桁架(集成式)   棒料送料机
