5轴加工中心F

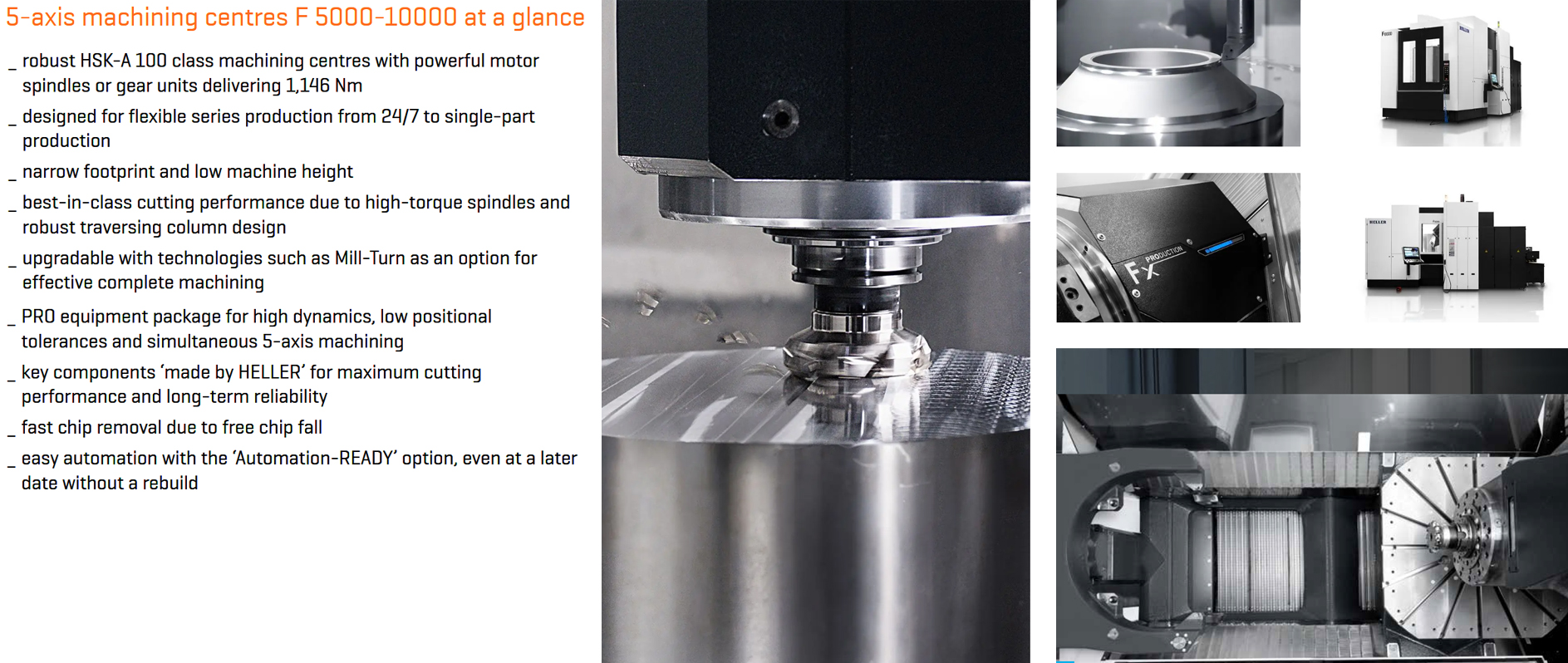

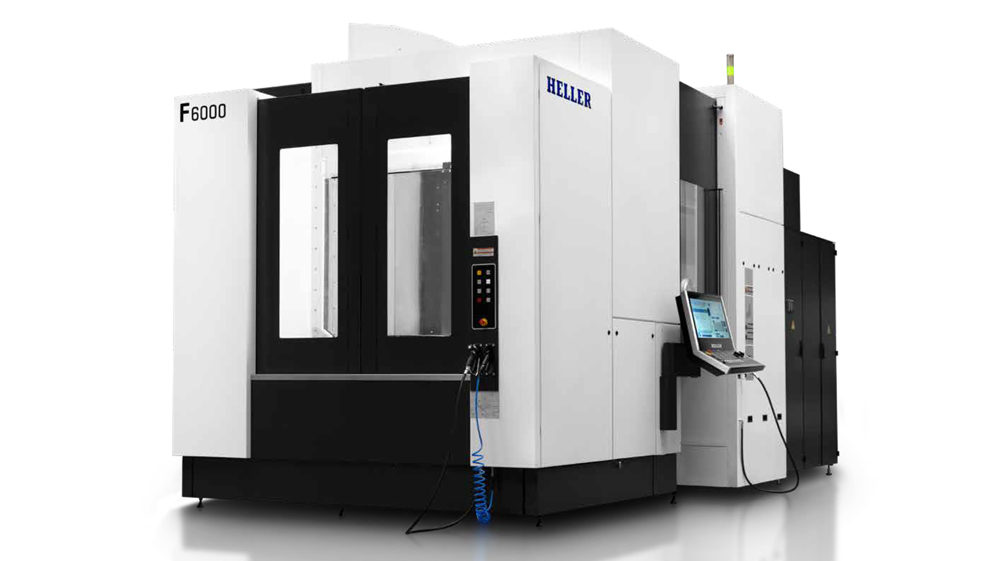

Designed for Production: The new generation of 5-axis machining centres F sets a new benchmark for cutting performance and precision

With its head kinematics, the new generation of the 5-axis F series has been designed from the ground up for flexible series production. Like all HELLER machines, they set a benchmark for cutting performance and precision. Other highlights include free chip fall, short idle times, optimum automation capability and compatibility with the H and FP series for a wide range of workpieces. In addition, the new models come with top-of-the-range specifications and the option to add technologies such as Mill-Turn, interpolation turning or power skiving.


亮点

5轴加工中心F系列

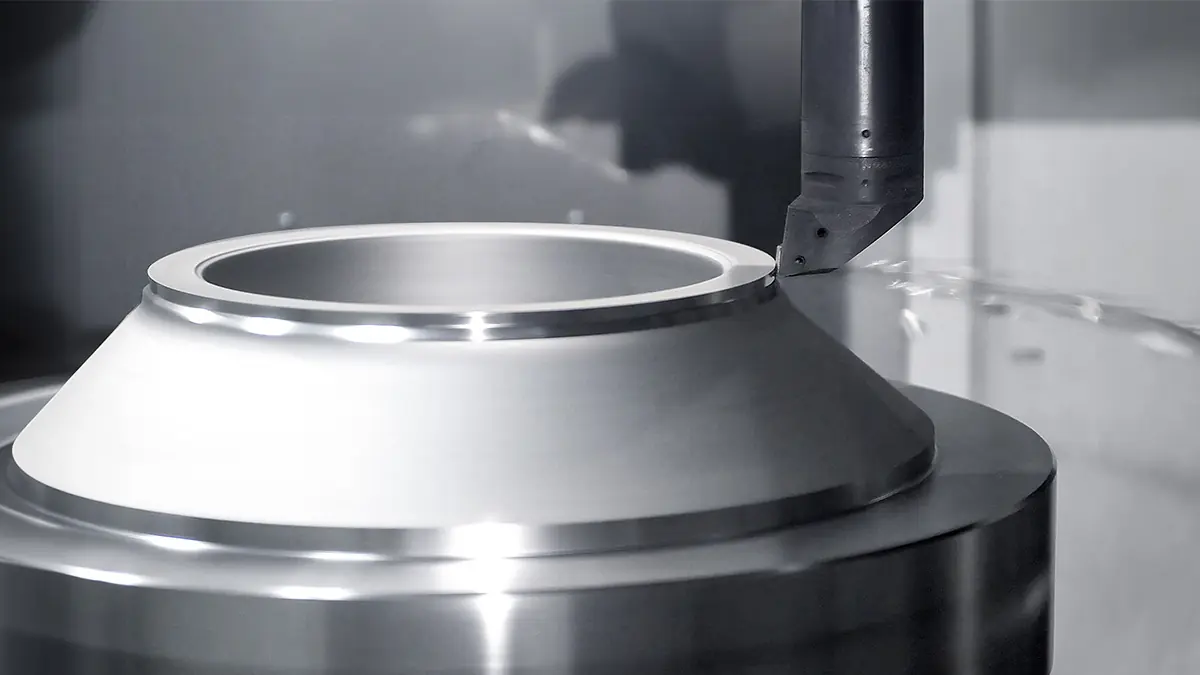

Mill-Turn

The optional Mill-Turn functionality enables combined milling and turning on a single machine – giving you even greater flexibility for the machining of your workpieces. Machining in a single set-up provides maximum component accuracy, while the use of a high-torque rotary table ensures maximum productivity.

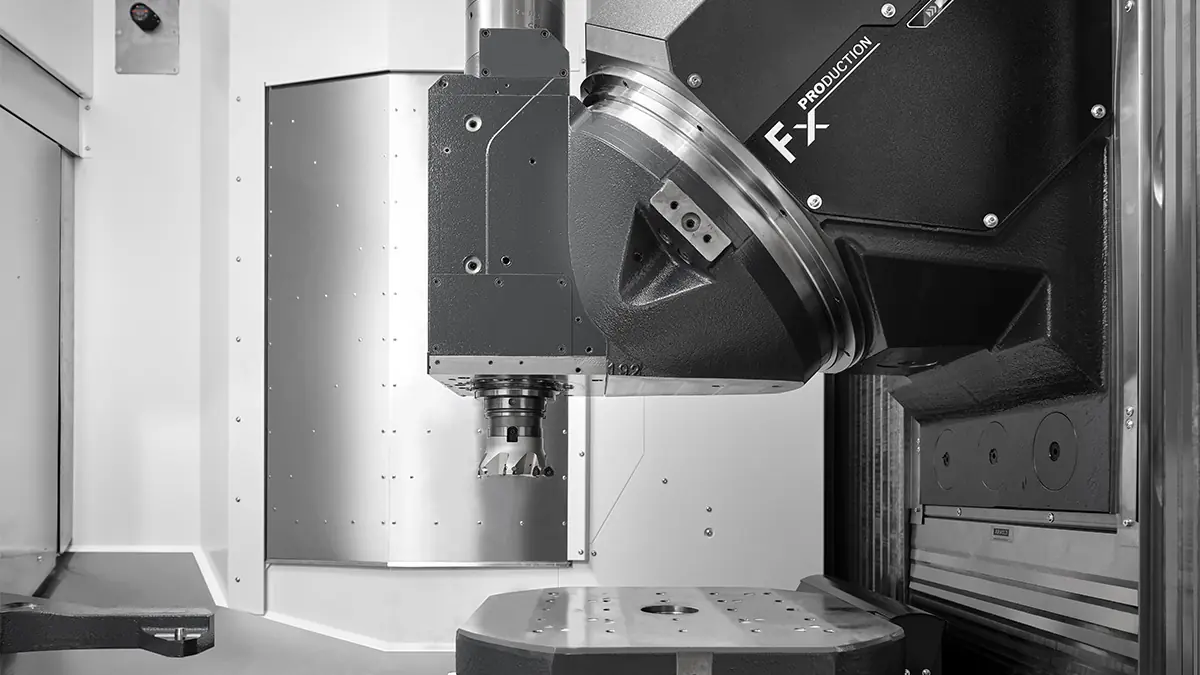

Machining units

Optimum process stability in 5-axis machining is also a question of having the right spindle. With our new generation F series you can choose from a range of swivel head and tilting head designs. Whether it is heavy-duty cutting of cast iron or steel, high-volume machining of light metals or vertical, horizontal and tilted turning with the optional Mill-Turn functionality – we have the right solution to suit your requirements.

5轴加工中心F系列
5轴加工中心F系列

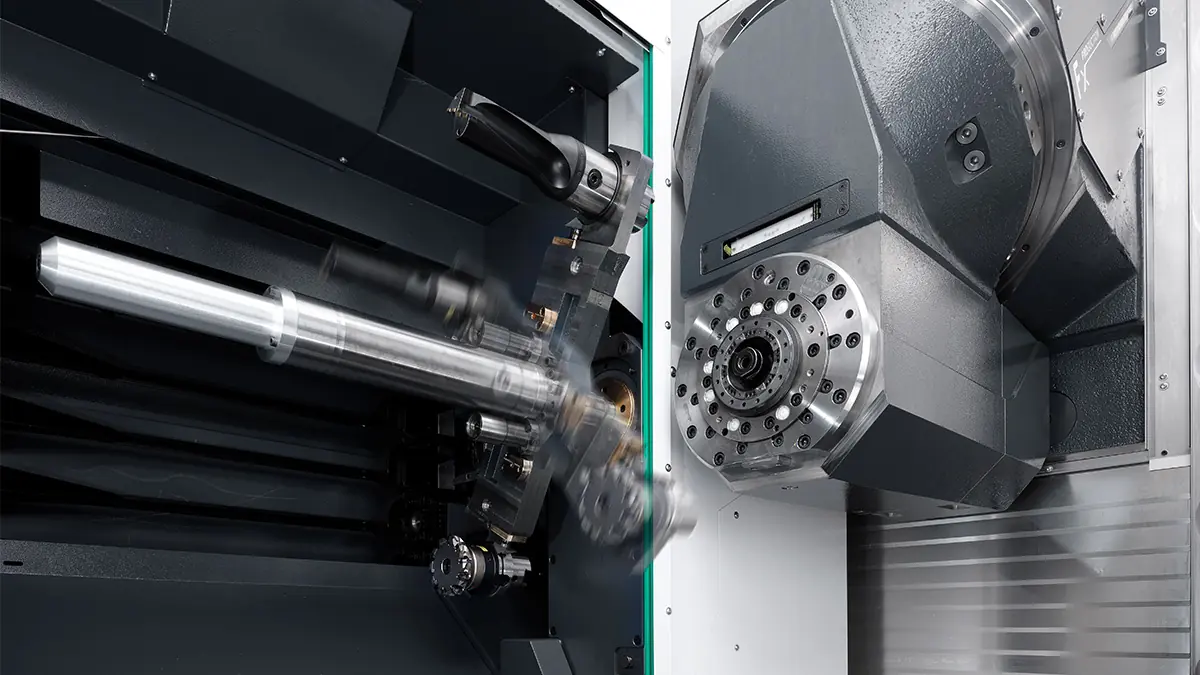

Tool management

Particularly in 5-axis and mill-turn machining, you work with a wide variety of tools and large tool geometries on a daily basis. No problem for our machining machining centres: they allow you to continue to use your tooling flexibly, while ensuring short tool loading times, short downtimes and short non-productive times.

产品规范


在线咨询

Optional:
● 排屑器    铰链式  刮板式
● 接屑车    110L   220L
● 刀塔高压出水   TTC-30bar  TTC-50bar   TTC-70bar
● 对刀仪    自动式   手动式
● 自动化    机器人   桁架(集成式)   棒料送料机
