5轴加工中心HF

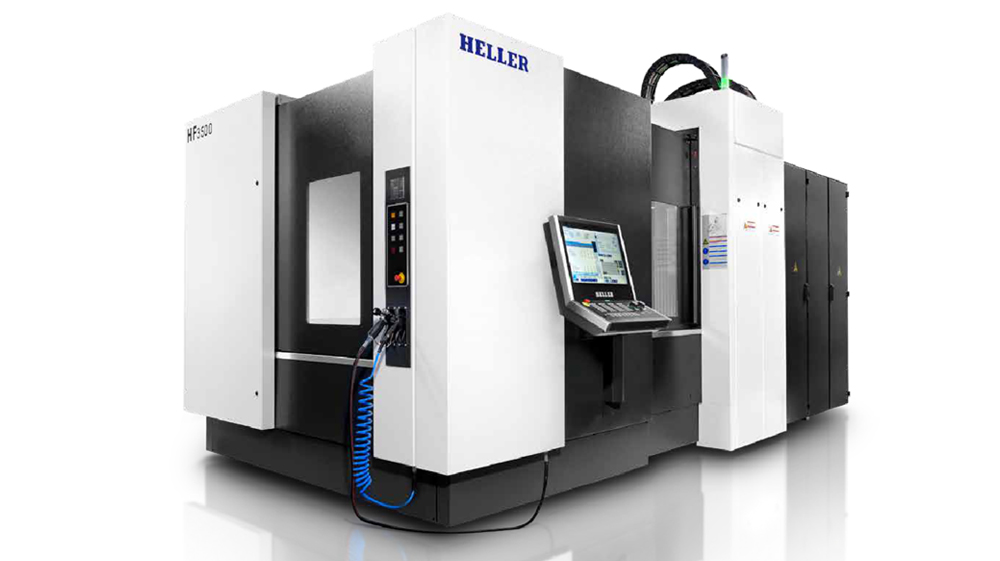

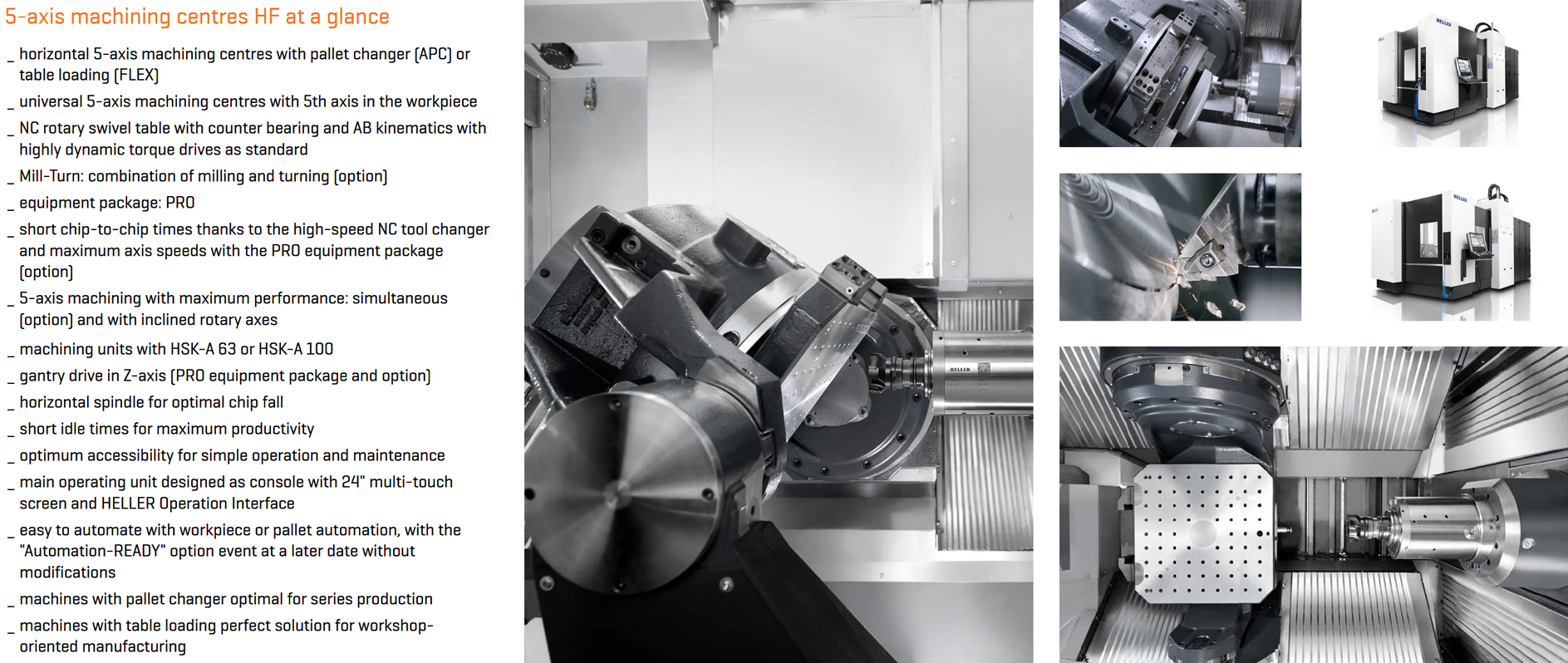

Productivity in 5 axes: 5-axis machining centres with the 5th axis in the workpiece for dynamic and productive machining

The 5-axis machining centres from the HF series are optimally equipped to meet the exacting requirements of modern production processes. Enabling 5-sided and simultaneous 5-axis machining, they allow you to handle many different tasks on a single machine. Highly productive and flexible, with easy operation and maintenance, available with pallet changer or table loading.


亮点

5轴加工中心HF系列

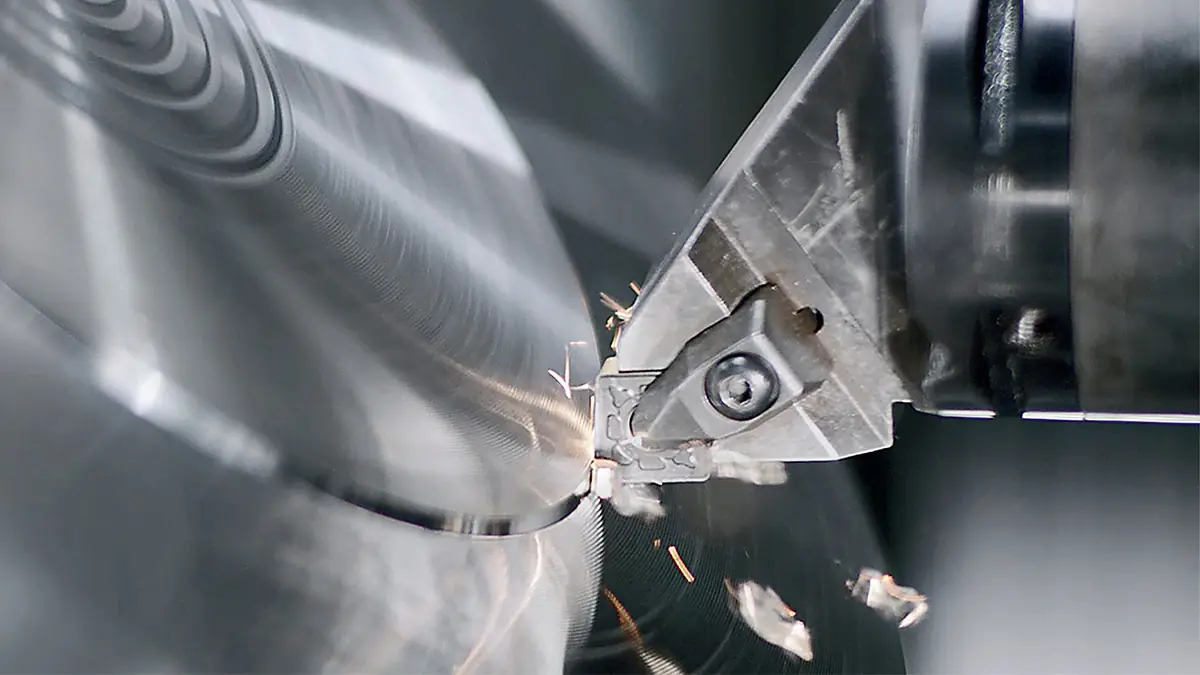

Mill-Turn

The optional Mill-Turn functionality enables combined milling and turning on a single machine – for even greater flexibility in production. Machining in a single set-up provides maximum component accuracy, whilst the use of a high-torque rotary table ensures maximum productivity.

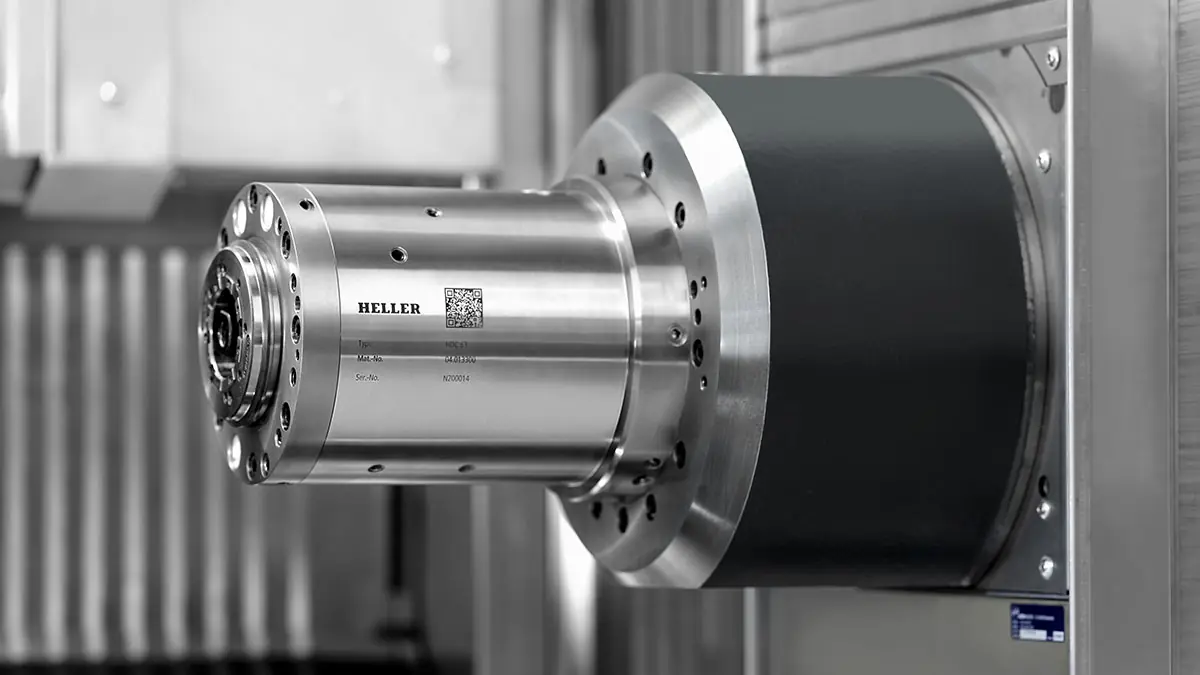

Machining units

5-axis machining requires all components of a machining centre to deliver a top performance. The spindle must be particularly efficient: highly flexible, with torque characteristic curve adapted for the task in hand and suitable for a range of materials. The HF-series 5-axis machining centres offer eight robust and powerful versions, so you work with a spindle that best suits your requirements.

5轴加工中心HF系列
5轴加工中心HF系列

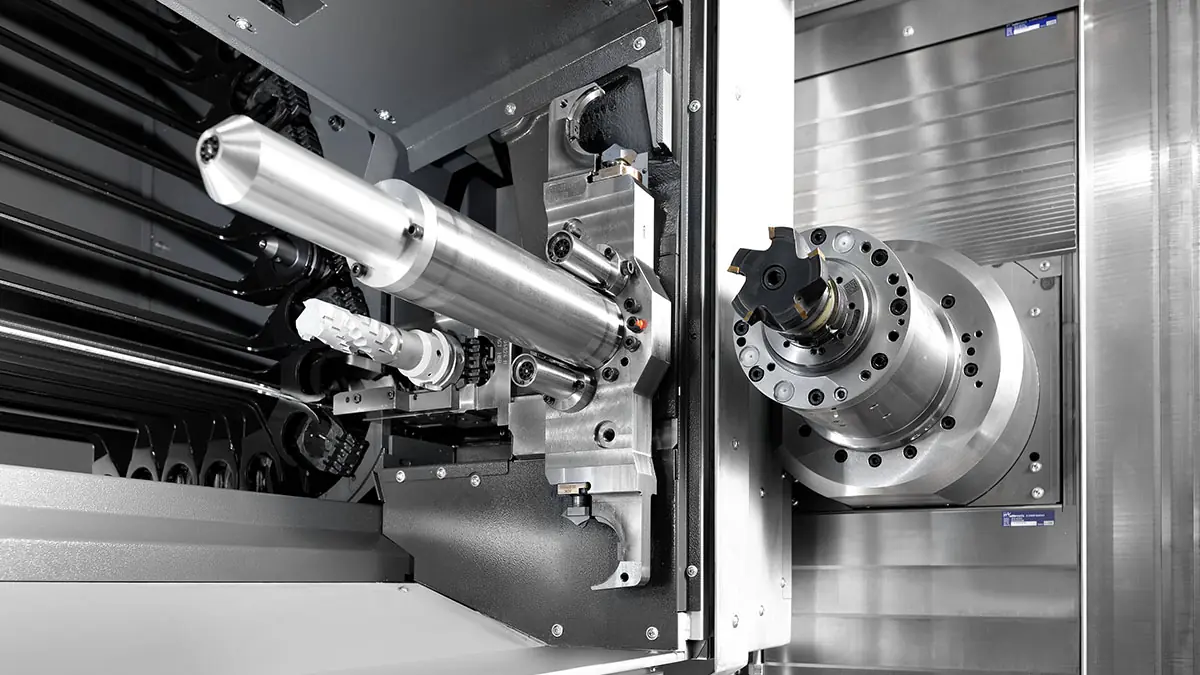

Tool management

If you have to work with a broad range of tools and respond flexibly to new production requirements, our HF-series 5-axis machining centres are the ideal solution for you. Powerful tool magazines and a precise high-speed tool changer for optimum chip-to-chip times guarantee you constantly short non-productive times.

产品规范


在线咨询

Optional:
● 排屑器    铰链式  刮板式
● 接屑车    110L   220L
● 刀塔高压出水   TTC-30bar  TTC-50bar   TTC-70bar
● 对刀仪    自动式   手动式
● 自动化    机器人   桁架(集成式)   棒料送料机
